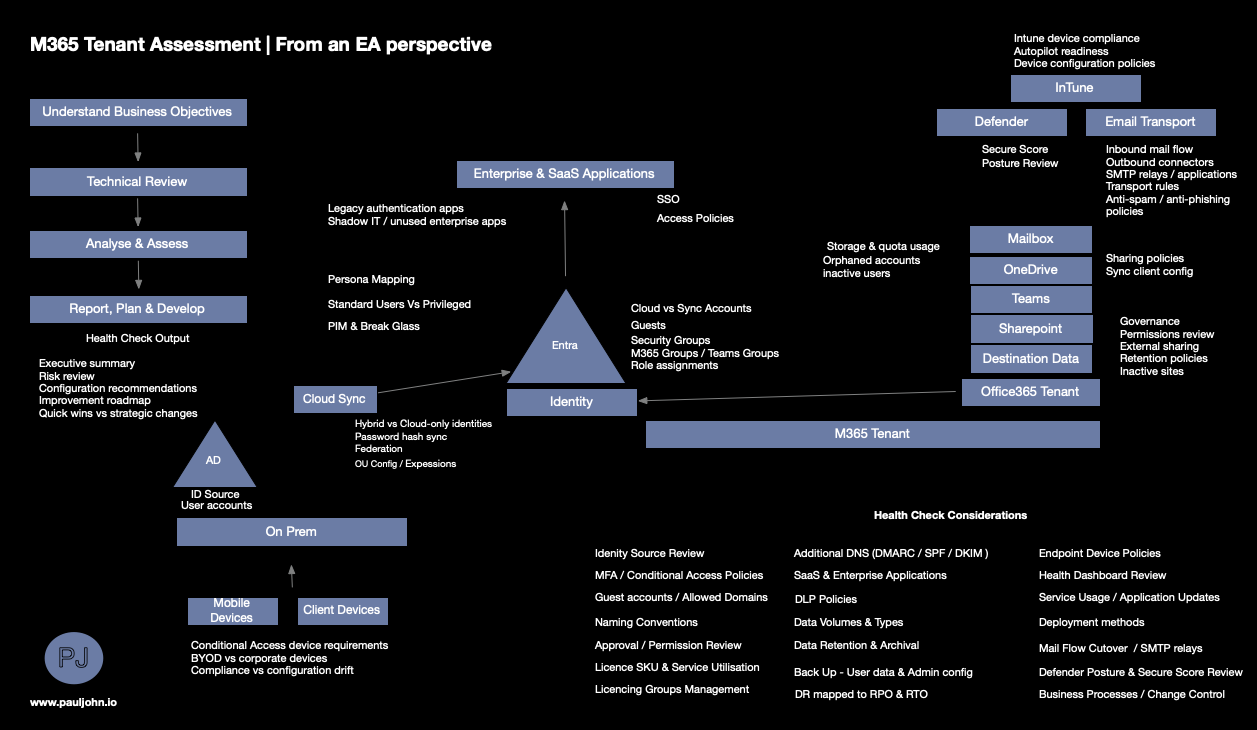

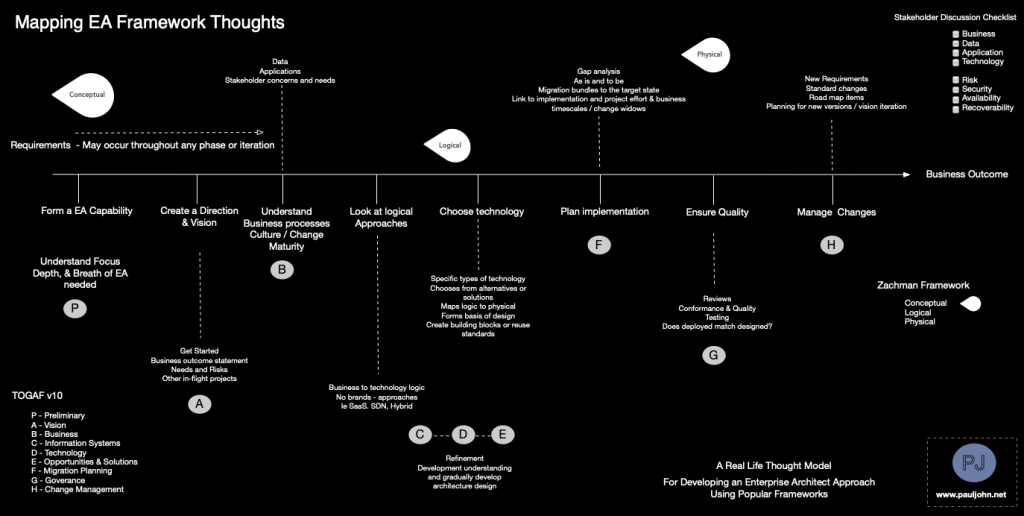

Here is a growing collection of my original architecture diagrams, and visual notes covering Azure, Microsoft 365, Copilot and enterprise architecture frameworks.
These resources are designed to simplify complex technical concepts and illustrate the thought processes used during architecture, design and real technical delivery.
Many of these diagrams are used during my own technical workshops and training courses as visual learning aids to explain architecture concepts.
Azure

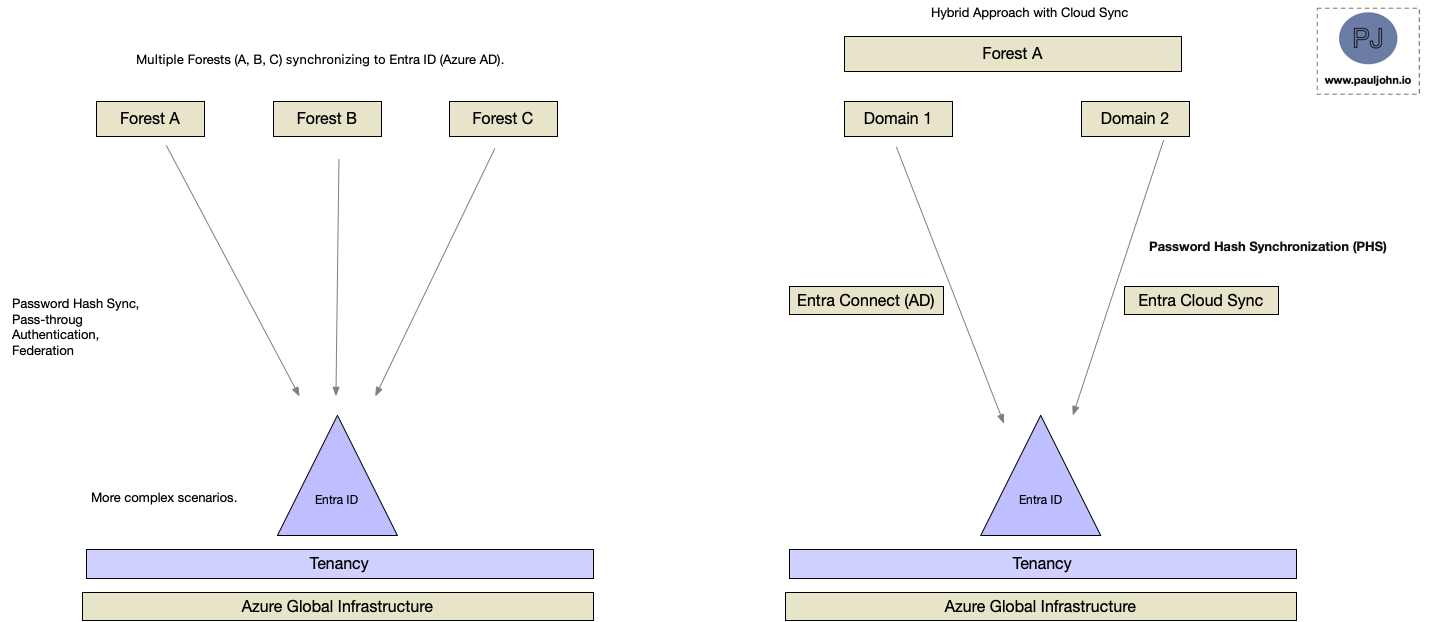

- Identity – Azure Entra – Conceptual

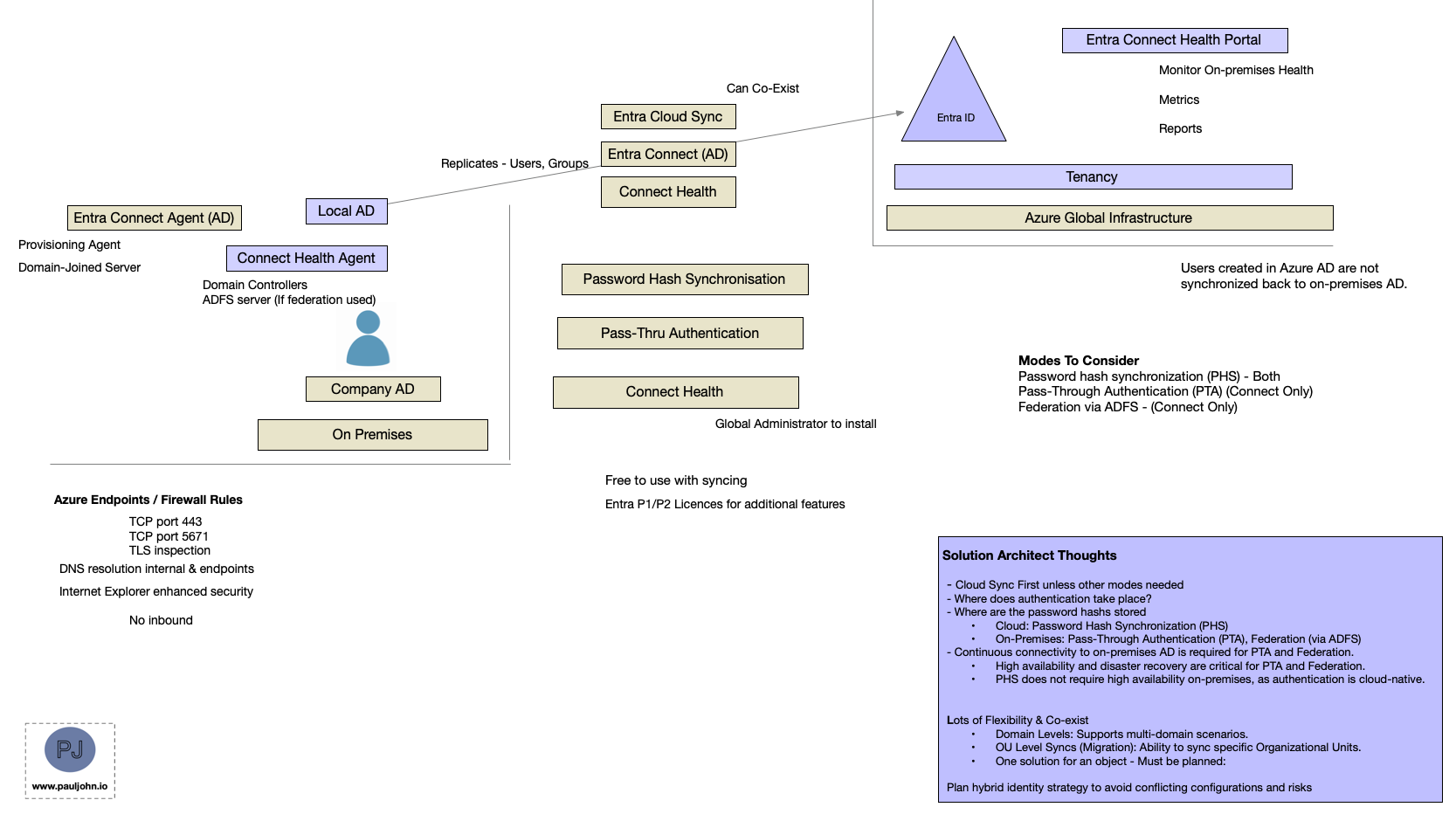

- Identity – Azure Entra Hybrid Identity – Logical
- Identity – Azure Entra Hybrid Identity – Co-Exist

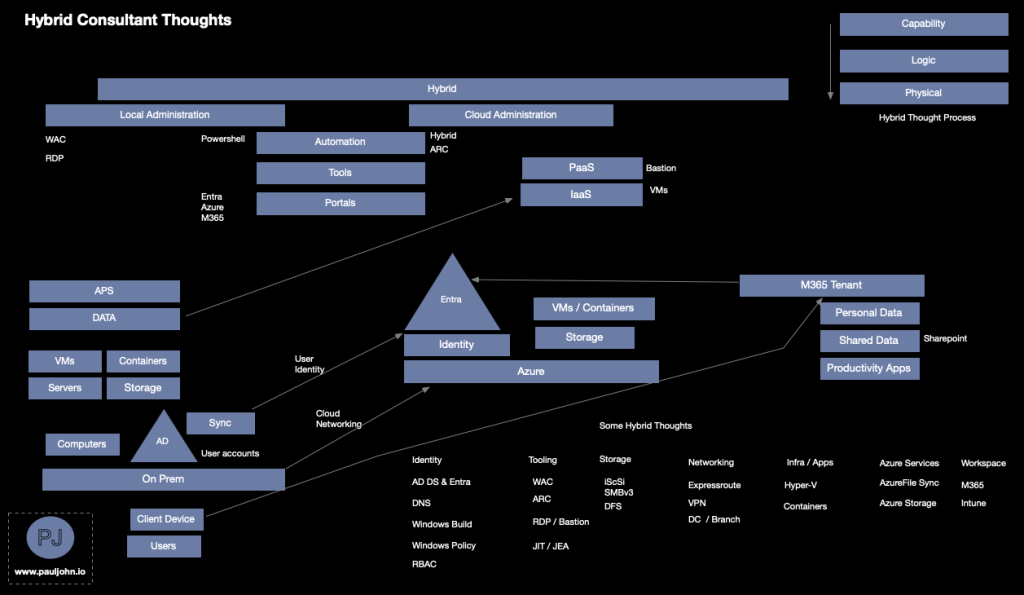

- Hybrid Cloud Consultant – Conceptual Thoughts
